在 tiptap 中实现斜杠功能

通过自定义方法,在 tiptap 中实现斜杠功能

通过自定义方法,在 tiptap 中实现斜杠功能

@kristapsungurs

我觉得 tiptap 是目前的最佳编辑器,高度可自定义,UI 都由你自己决定,这是基于 react 的一个官方 demo,可以去体验一下。

下面进入正题,官方文档中只是简单实现,但我想实现下面的这种。

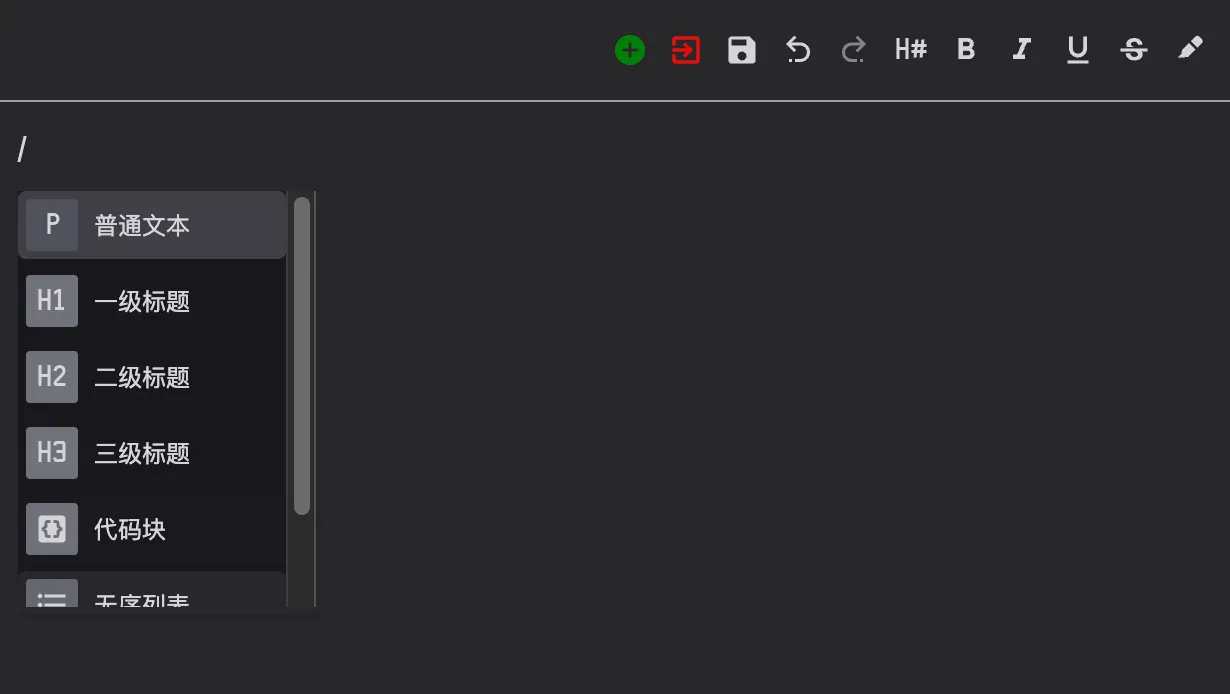

键盘选择

以下教程基于 Vue3 + tailwindcss

首先创建 4 个自定义文件

  1. slash.js

        import { Extension } from '@tiptap/core'
    import suggestion from '@tiptap/suggestion'

    export default Extension.create({
      name: 'slash',
      addOptions() {
        return {
          suggestion: {
            char: '/',
            command: ({ editor, range, props }) => {
              props.command({ editor, range })
            }
          }
        }
      },

      addProseMirrorPlugins() {
        return [
          suggestion({
            editor: this.editor,
            ...this.options.suggestion,
          })
        ]
      }
    })

  2. suggestion.js

        import { VueRenderer } from '@tiptap/vue-3'
    import tippy from 'tippy.js'

    import CommandsList from './CommandsList.vue'

    export default function set(items) {
      return {
        items: () => {
          return items
            ? items
            : [
                {
                  title: '一级标题',
                  icon: 'mdi:format-header-1',
                  command: ({ editor, range }) => {
                    editor.chain().focus().deleteRange(range).setNode('heading', { level: 1 }).run()
                  }
                }
              ]
        },
        render: () => {
          let component
          let popup

          return {
            onStart: props => {
              component = new VueRenderer(CommandsList, {
                props,
                editor: props.editor
              })
              const { $cursor } = props.editor.view.state.selection
              const selection = props.editor.state.selection

              // 获取选区的上下文
              const context = selection.$from.depth ? selection.$from.node(selection.$from.depth - 1) : null
              const listItem = context && context.type.name === 'listItem'
              const isCursorInParagraph = $cursor && $cursor.parent.type.name === 'paragraph'
              if (!props.clientRect || !isCursorInParagraph || listItem) {
                return
              }
              popup = tippy('body', {
                getReferenceClientRect: props.clientRect,
                appendTo: () => document.body,
                content: component.element,
                showOnCreate: true,
                interactive: true,
                trigger: 'manual',
                placement: 'bottom-start'
              })
            },

            onUpdate(props) {
              component.updateProps(props)
              if (!props.clientRect || props.text !== '/') {
                popup[0].hide()
                return
              }
              if (props.text === '/') {
                popup[0].show()
              }
              popup[0].setProps({
                getReferenceClientRect: props.clientRect
              })
            },

            onKeyDown(props) {
              if (props.event.key === 'Escape') {
                popup[0].hide()

                return true
              }

              return component.ref?.onKeyDown(props)
            },

            onExit() {
              popup[0].destroy()
              component.destroy()
            }
          }
        }
      }
    }

  3. CommandsList.vue

        <template>
      <div class="w-max flex shadow rounded py-1">
        <div
          id="scrollingDiv"
          class="flex flex-col items-center gap-y-1 max-h-52 h-max overflow-y-auto dark:bg-zinc-900 dark:text-zinc-300"
        >
          <button
            class="tippy-item flex items-center p-1 pr-12 text-xs hover:bg-zinc-200 dark:hover:bg-zinc-700 transition-colors rounded cursor-pointer w-full group"
            :class="{ 'bg-zinc-200 dark:bg-zinc-700': index === selectedIndex }"
            v-for="(item, index) in items"
            :key="index"
            @click="selectItem(index)"
          >
            <div
              class="flex p-1 mr-2 bg-zinc-200 dark:bg-zinc-500 group-hover:bg-zinc-50 dark:group-hover:bg-zinc-600 transition-colors rounded-sm"
              :class="{ 'bg-zinc-50 dark:bg-zinc-600': index === selectedIndex }"
            >
              <Icon :icon="item.icon" />
            </div>
            {{ item.title }}
          </button>
        </div>
      </div>
    </template>

    <script>
    import Icon from './Icon.vue'
    export default {
      components: {
        Icon
      },
      props: {
        items: {
          type: Array,
          required: true
        },

        command: {
          type: Function,
          required: true
        }
      },

      data() {
        return {
          selectedIndex: 0,
          scrollingDiv: null
        }
      },
      mounted() {
        this.scrollingDiv = document.getElementById('scrollingDiv')
      },
      watch: {
        items() {
          this.selectedIndex = 0
        }
      },

      methods: {
        onKeyDown({ event }) {
          if (event.key === 'ArrowUp') {
            this.upHandler()
            return true
          }

          if (event.key === 'ArrowDown') {
            this.downHandler()
            return true
          }

          if (event.key === 'Enter') {
            this.enterHandler()
            return true
          }
          return false
        },
        upHandler() {
          this.selectedIndex = (this.selectedIndex + this.items.length - 1) % this.items.length
          this.scrollDiv()
        },
        downHandler() {
          this.selectedIndex = (this.selectedIndex + 1) % this.items.length
          this.scrollDiv()
        },
        scrollDiv() {
          let buttons = this.scrollingDiv.querySelectorAll('button')
          let button = buttons[this.selectedIndex]
          button.scrollIntoView({ behavior: 'smooth', block: 'nearest', inline: 'start' })
        },
        enterHandler() {
          this.selectItem(this.selectedIndex)
        },
        selectItem(index) {
          const item = this.items[index]

          if (item) {
            this.command(item)
          }
        }
      }
    }
    </script>

  4. Icon.vue

        <script setup>
    import { Icon } from '@iconify/vue'
    defineProps(['icon', 'height', 'inline', 'color'])
    </script>
    <template>
      <div>
        <Icon
          :icon="icon"
          :height="height ? height : '18'"
          :inline="inline ? true : false"
          :color="color ? color : ''"
        />
      </div>
    </template>


然后我们在主文件 index.vue 中引入自定义拓展

    <script setup>
import { useEditor, EditorContent } from '@tiptap/vue-3'
import Slash from './slash.js'
import suggestion from './suggestion.js'
const props = defineProps(['content', 'slash'])
const editor = useEditor({
  editable: true,
  content: props.content,
  extensions: [
    Slash.configure({
      suggestion: suggestion(props.slash)
    })
  ],
})
</script>
<template>
	<div class="dark:bg-zinc-800 dark:text-zinc-300 min-h-screen flex flex-col">
  	<editor-content class="w-full" :editor="editor" />
	</div>
</template>

props.slash 数据有以下自定义数组组成

    const slash = [
  {
    title: '普通文本',
    icon: 'mdi:format-paragraph',
    command: ({ editor, range }) => {
      editor.chain().focus().deleteRange(range).setNode('paragraph').run()
    }
  },
  {
    title: '一级标题',
    icon: 'mdi:format-header-1',
    command: ({ editor, range }) => {
      editor.chain().focus().deleteRange(range).setNode('heading', { level: 1 }).run()
    }
  },
  {
    title: '二级标题',
    icon: 'mdi:format-header-2',
    command: ({ editor, range }) => {
      editor.chain().focus().deleteRange(range).setNode('heading', { level: 2 }).run()
    }
  },
  {
    title: '三级标题',
    icon: 'mdi:format-header-3',
    command: ({ editor, range }) => {
      editor.chain().focus().deleteRange(range).setNode('heading', { level: 3 }).run()
    }
  },
  {
    title: '代码块',
    icon: 'mdi:code-braces-box',
    command: ({ editor, range }) => {
      editor.chain().focus().deleteRange(range).setNode('codeBlock').run()
    }
  },
  {
    title: '无序列表',
    icon: 'mdi:format-list-bulleted',
    command: ({ editor, range }) => {
      editor.chain().focus().deleteRange(range).toggleBulletList().run()
    }
  },
  {
    title: '有序列表',
    icon: 'mdi:format-list-numbered',
    command: ({ editor, range }) => {
      editor.chain().focus().deleteRange(range).toggleOrderedList().run()
    }
  }
]

至此,自定义 / 命令就可以正常工作了,注意别忘记安装使用到的依赖
